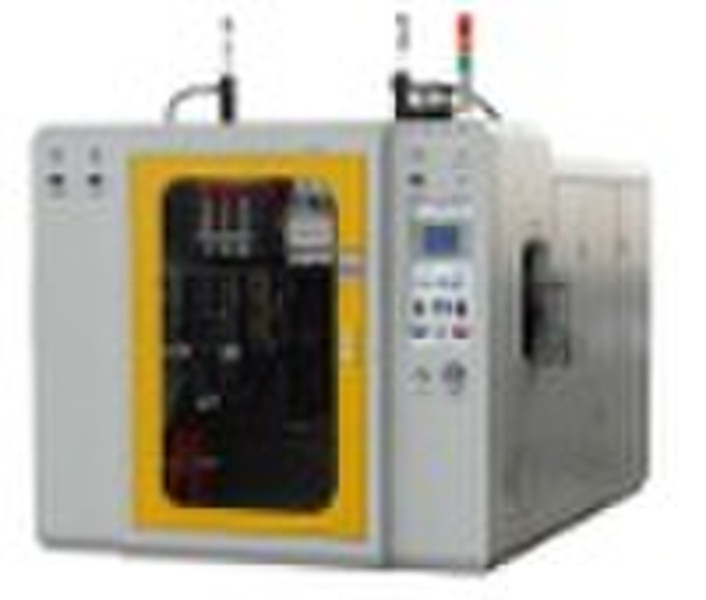

Full-automatic extrusion blow molding machine MD50

MD50R series double station blow molding machines suitable for making1.5 liters bottle with materials of PE,PP,PVC,EVA,ABS,etc. MD50R Main Technique Paramters System ItemUnitBasic paramters Basic Spec Plastic fit for PE PP PVC PAMax hollow product volume L1.5Diehead amount set1.2.3. 4Size(LxWxH) M2.65*1.97*2.15Weight ton3 Clamping System Clamping force kN27Template distance mm110-280Template stroke mm170Max template size(WxH) mm320*260Mould thickness mm115-150 Extrusion System Screw Dia mm50Screw L/D ratio L/D24Plasticizing capacity (HDPE) Kg/h25Screw heating zone zone3Screw heating power kW5.5Screw fans power kW0.18Extrusion motors power kW7.5 Die head Diehead heating zone zone2Diehead heating power kW3.5Sprue-die dia(max) mm50 Power General power kW24Oil-pump motor power kW5.5Air pressure Mpa0.6-0.8Average power kW14Compressed air dosage m3min0.4
