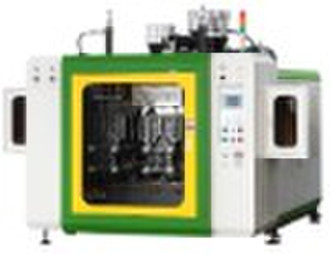

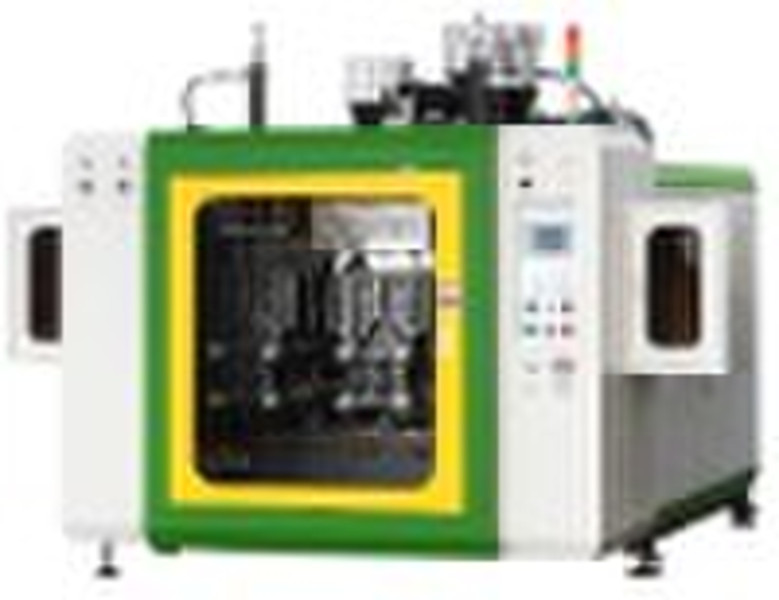

Full-automatic extrusion blow molding machine MD60
Zhiyu Xu
Contact person
Basic Information
MingDa MD60R series full-automatic blow molding machines suitable for making 3 liters bottles with all kinds of plastics except PET. The machine equipped with Siemens PLC,Taiwan ABBA linear guider,inverter...with optimized hydraulic oil loop design,offers you a stable,safe,high efficiency,energy saving solutions.More details of configurations and technical parameters,pls don't hesitate to contact us. SystemItemUnitBasic paramters Basic Spec Plastic fit for PE PP PVC PAMax hollow product volume L3Diehead amount set123456xxSize(LxWxH) M3.22x3.00x2.28Weight ton3.4 Clamping System Clamping force kN40Template distance mm120-280Template stroke mm160(x)Max template size(WxH) mm480x320Mould thickness mm125-160 Extrusion System Main Screw Dia mm60Vice-Screw Dia mm30Screw L/D ratio L/D24HDPEPlasticizing capacity (HDPE) Kg/h50Screw heating zone zone7Screw heating power kW14Screw fans power kW0.42Main Extrusion motors power kW15Vice- Extrusion motors power KW2.2 Die head Diehead heating zone zone13Diehead heating power kW7.5Sprue-die dia(max) mm30 Power General power kW50Oil-pump motor power kW7.5Air pressure Mpa0.6-0.8Average power kW28.5Compressed air dosage m3min0.4
Delivery terms and packaging
Packaging Detail: fumigation-free pakaging, or fumigated pallets Delivery Detail: 45 days
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
