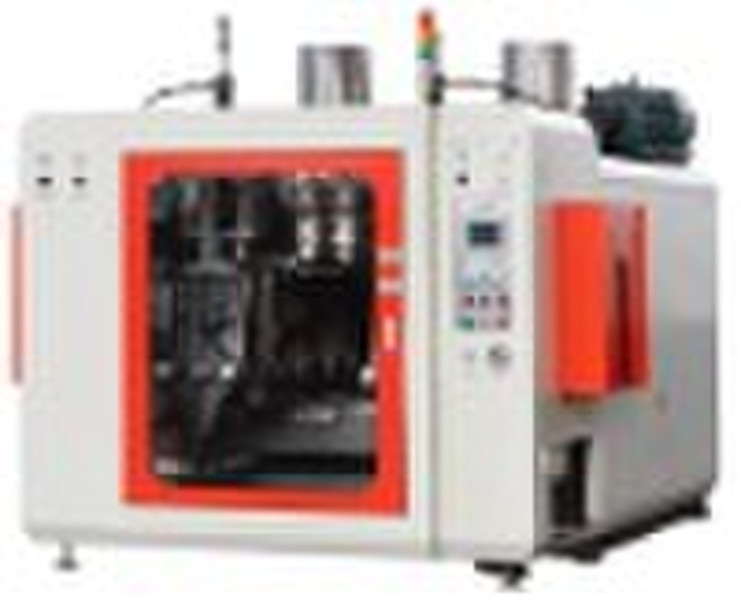

Full-automatic extrusion blow molding machine MD70

MD70R series double station blow molding machines suitable for making 5 liters bottle with materials of PE,PP,PVC,EVA,ABS,etc. MD70R Main Technique Paramters System ItemUnitBasic paramters Basic Spec Plastic fit for PE PP PVC PAMax hollow product volume L5Diehead amount set123. 4 .5.6Size(LxWxH) M3.64*2.64*2.5Weight ton4.5 Clamping System Clamping force kN70Template distance mm180-480Template stroke 300Max template size(WxH) mm450*400Mould thickness mm185-250 Extrusion System Screw Dia mm70Screw L/D ratio L/D24Plasticizing capacity (HDPE) Kg/h85Screw heating zone zone3Screw heating power kW14.5Screw fans power kW0.42Extrusion motors power kW18.5 Die head Diehead heating zone zone2Diehead heating power kW6.5Sprue-die dia(max) mm130 Power General power kW42.68Oil-pump motor power kW9.5Air pressure Mpa0.6-0.8Average power kW32Compressed air dosage m3min0.4
