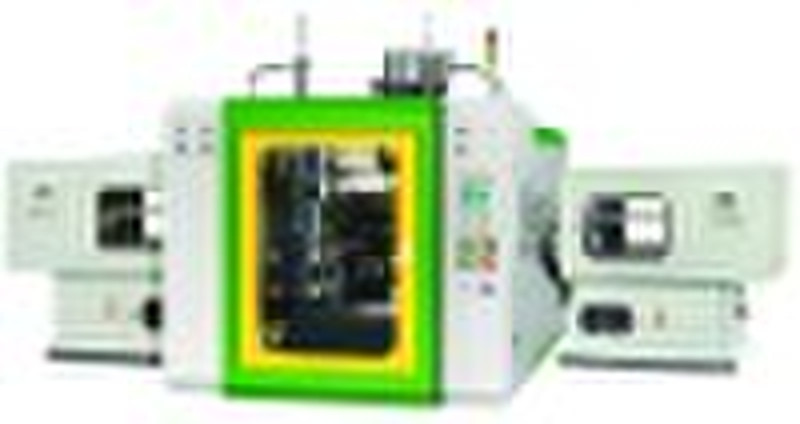

Fully-automatic extrusion blow molding machines
Zhiyu Xu
Contact person
Basic Information
MingDa MD55R series full-automatic blow molding machines suitable for making 5ml 5L bottles with all kinds of plastics except PET,multi-layers,view line,etc. MD55Rx1 double station blow molding machines (EBM) suitable for making 2L bottles with PP/PE/PC/PVC/PA... Extrusion blow molding machine Model MD55R series Technical parameters: System ItemUnitBasic parameter Basic Spec Plastic fit for PE PP PVC PAMax hollow product volume L2Diehead amount set1234Size(LxWxH) M3.05x2.17x2.28Weight ton3.4 Clamping System Clamping force kN30Template distance mm120-350Template stroke 230Max template size(WxH) mm340x320Mould thickness mm125-180 Extrusion System Screw Dia mm55Screw L/D ratio L/D24Plasticizing capacity (HDPE) Kg/h35Screw heating zone zone3Screw heating power kW8Screw fans power kW0.42Extrusion motors power kW11 Die head Diehead heating zone zone2Diehead heating power kW4.2Sprue-die dia(max) mm75 Power General power kW34.5Oil-pump motor power kW5.5Air pressure Mpa0.6-0.8Average power kW23.9Compressed air dosage m3min0.4Cooling water dosage L/min50
Delivery terms and packaging
Packaging Detail: fumigation-free pakaging, or fumigated pallets Delivery Detail: 45days
